DES-CASE Visual Analysis Systems

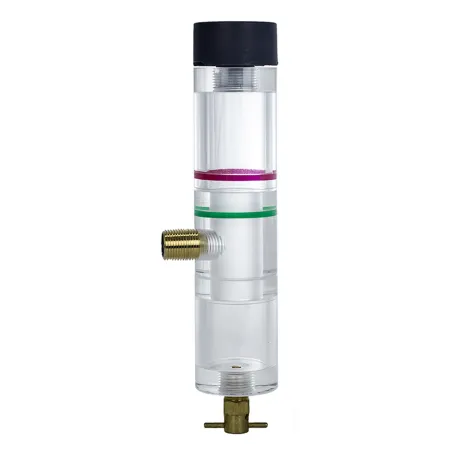

Oil Sight Glass Level Monitor
The Oil Sight Glass Level Monitor (OSGL) allows you to view oil color, clarity and accumulation of water or other contaminants while monitoring the level of the oil in the reservoir. It is available in multiple lengths ranging from 3″ to 24″ to correspond to the distance from the oil reservoir access port and the maximum height the oil will reach. A dual port version is available with a second 3/8″ NPT port opposite the installation nipple to allow the installation of a sampling tube to draw representative oil samples without pulling outside contaminants.
Applications
• Pumps
• Gearboxes
• Storage Tanks
Descriptions
1. Des-Case ND-2 Breather
2. Idle/Maximum Oil Level Marker
3. Running/Minimum Oil Level Marker
4. 3/8″ NPT Port
Dual port models available.
5. Water Accumulation
6. 1/4″ Brass Drain Valve
SPECIFICATIONS
Material
• Stain-resistant acrylic
• Brass fittings standard
• Des-Case ND-2 breather 0.3μ absolute (ß0.3≥1000)
Recommended Temperature Range
• -40˚F to 200˚F
• -40˚C to 93˚C
Maximum Operating Pressure
• 65 psi
• 4.48 bar
Chemical Compatibility
• All mineral and synthetic oils
Available Options
• 3/8″ NPT single port or dual ports
• Lengths ranging from 3” to 24”
• Stainless steel fittings
• Magnetic drain valve for collecting ferrous material
*Comes in variety of sizes, please do contact our representative for more informations.
