Portable Filtration

VariPure

The VariPure is the most advanced filter trolley for clean oil transfer and off-line filtration of hydraulic and lubricating fluids. It is the perfect solution for quick flushing and hydraulic systems with different viscosities, making it a highly flexible unit.

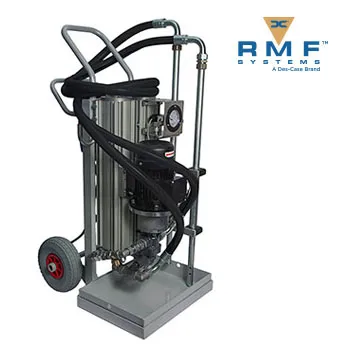

Portable Filtration VariPure 1 varipure350_1_jpg

Applications

The VariPure is the perfect solution for quick flushing and hydraulic systems with different viscosities, making it a highly flexible unit.

Descriptions

Features
• FREQUENCY CONTROLLER – Regulates the speed of the electric motor and display actual amperage, RPM and frequency.
• HYDRAULIC CONNECTIONS – Suction and return tubes for simple hydraulic connection.
• PRESSURE DIFFERENTIAL GAUGE/SWITCH – Indicates the element saturation and switches off the unit when filter element is saturated
• SAMPLING POINTS – To connect a particle counter like PLPC.
• ELECTRIC MOTOR – One motor for most commonly used voltages.
• INDUSTRIAL WHEELS – Puncture proof tires for easy maneuvering on all floor surfaces.
• GEAR PUMP – High quality low pressure steel gear pump with internal safety valve.
• FILTER CART – Heavy duty steel, powder coated frame with removable drip tray.


SPECIFICATIONS

Flow
• 18,5 – 50 l/min (750 – 2000 rpm)
Max. Oil Temperature
• 100° C
Seal material
• FPM
Max. pressure filter housing
• 20 bar
Suction and return hose
• 3 meter
Suction and return pipe
• 1 meter
Electric cable
• 15 meter
Viscosity range
• 12 – 800 cSt
Nominal power rating electric motor
• 0,75 kW Power rating may change when using different voltage
Suitable elements
• 60G series in 1, 3, 6 and 12 micron / 60A series in 1 & 5 micron
Pump safety
• 6 bar
Fluid compatibility
• Hydraulic fluid according ISO 2943
Approximate weight
• 115 kg
Prefilter
• 100 µm
