Applications

• Decontaminating systems
• Flushing new or repaired systems
• Dispensing new oil
• Pre-filtering new oil
• Evacuating used oil
• Topping-off reservoirs
• Collecting oil samples for analysis

Intended Use
• To be used for offline, secondary filtration and not inline filtration.
• In general industrial environments, both indoors and outdoors.
• For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of 32-648cSt (150-3000ssu) within ambient temperature ranges of -25°F to 104°F (-32°C to 40°C).
• Placed at the same level or below the equipment being filtered and within reach of the recommended standard 12-foot hoses.
• This system should be stored and used on a level surface, right side up, in a low-traffic area, and connected to the appropriate power source.

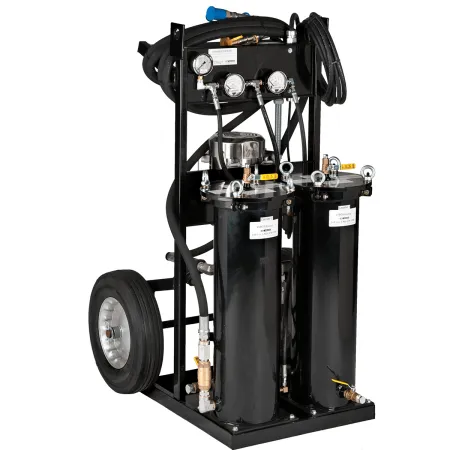

Descriptions

What is Standard

Canisters
• Heavy-duty, industrial style with bolt-down lids and heavy gauge cylinder walls. These canisters can accept various size high-capacity microfiber glass, depth, water removal and molecular sieve elements and can be changed very easily.
Pump

Continuous-duty gear pump; 1-40gpm flow rates available:
• Motor
• Washdown, heavy duty
• Switch
• NEMA 4 industrial-duty
• Frame
• Heavy-duty rectangular tubing

Lifting Eye Bolts
• Allows for easy lifting and maneuverability

Hoses
• Steel braid reinforced hydraulic hoses

Gauges
• Pump pressure and differential pressure gauges

Strainer
• To protect the pump

Manual Bypass
• To bypass filters during oil disposal

Wheels
• 16″ solid rubber

Colors Standard is black

Customizable colors available at no extra charge


What is Customizable
• Flow rates
• Sample valves
• Strainer type
• Color
• Power configurations
• Filter media types and sizes
• Type of power phase – single or three



Performance

Ambient Operating Temperatures
• – 25°F to 104°F (-32°C to 40°C)
Oil Temperature Range
• – 15°F to 175°F (-26°C to 79°C)
High Pressure Switch
• Shuts down the system’s motor at 65psi (5.49bar)
Pump Relief
• Opens at 75psi (5.17bar)
Materials
• Frame: Carbon steel
• Paint: Industrial powder coat
• Fittings: Zinc-plated steel, brass, bronze, stainless steel, cast iron
• Pumps: Steel, Buna-N, iron, Viton®, graphite
• Hoses: EPDM or nitrile

Weight
• Approximately 260-650lbs (118 to 295Kg). Will vary depending on system configurations.
